Specifications

Minimum Cold Temperature Supply 5C
Maximum Cold Temperature Supply 30C
Minimum Hot Temperature Supply 55C
Maximum Hot Temperature Supply 90C
Minimum Thermostatic Temperature 35C
Maximum Thermostatic Temperature 48
Maximum Flow Rate (L/min@200kPa pressure loss) 39
Minimum Flow Rate for Stable Outlet Temperature (L/min) 4
Minimum Flow Rate (L/min) 2
Maximum Flow Rate (L/min) 45
Inlet Connection 1/2" MI with compression nuts
Outlet Connection 1" with 1"x1/2" and/or 1"x 3/4" BSP adaptors
  • Thermal Flush Lift Lever activation incorporated within the headworks for superior flush capabilities
  • Scald and thermal shock protection with rapid thermal shut-off should either the cold or hot water supply fails
  • Highly responsive temperature control, maintaining outlet temperature within +/- 2˚C under changing inlet temperature and pressure conditions
  • Delivers high flow at low pressure loss
  • Supplied complete with isolating valves, non-return valves and dual stage strainers incorporating temperature/ pressure test ports
  • Flexible installation - can be upside down or sideways, inlet and outlet connections may be rotated to suit pipework design

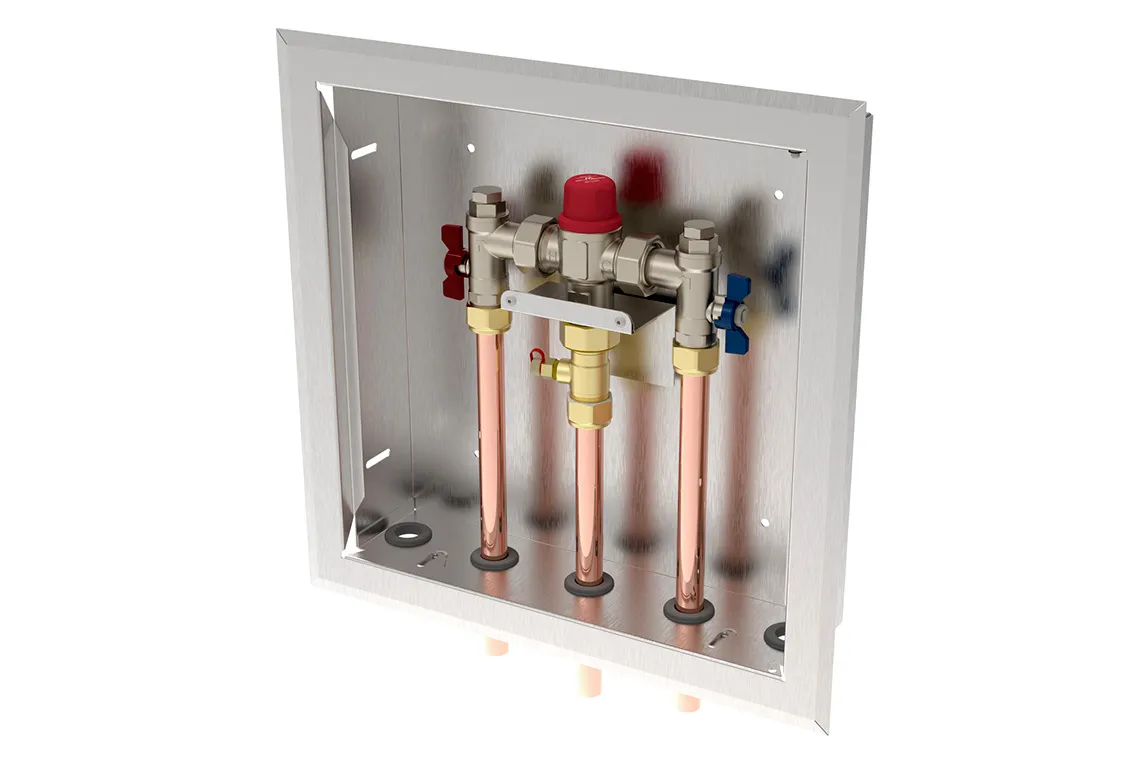

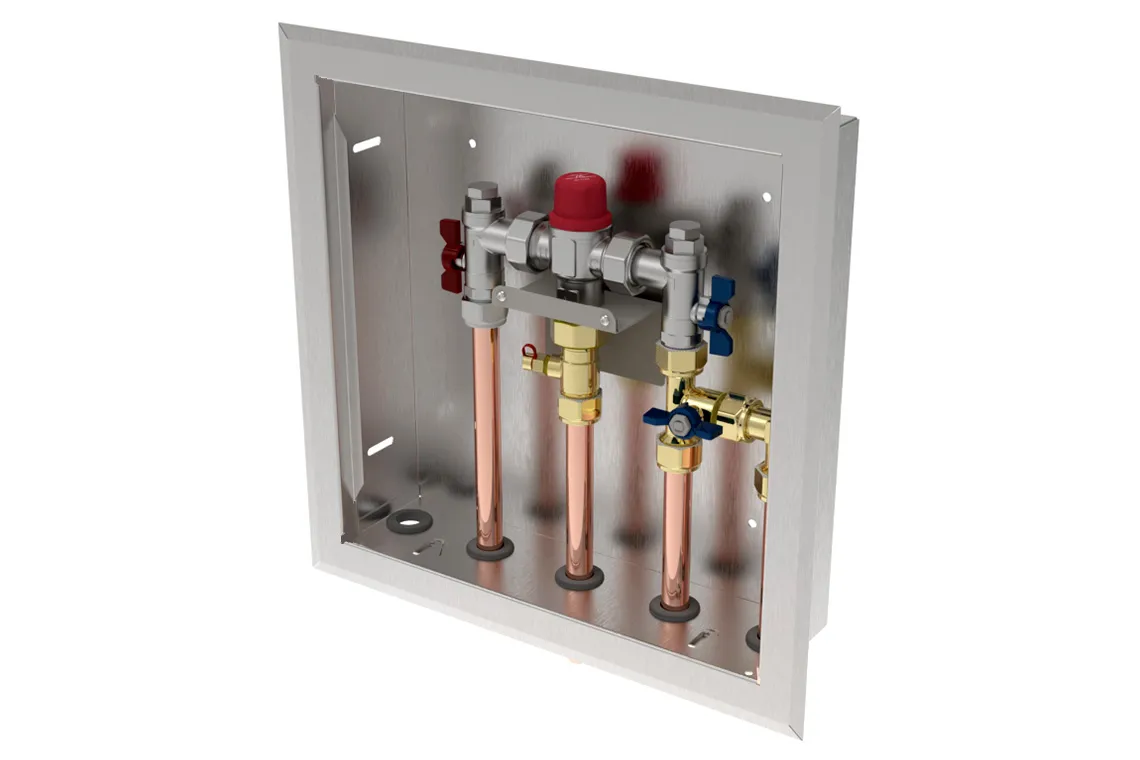

  • Available in a range of pre-plumbed configurations mounted in lockable stainless steel cabinets
  • Standards licensed to AS4032.1 - Thermostatic Mixing Valves

Guides & Documents

Approval Information

WaterMark Licence WMKA25301
